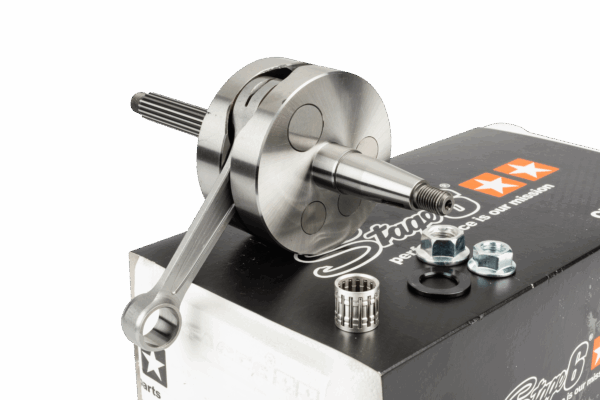

Stage6 R/T high-end racing crankshaft 47mm stroke / 100mm connecting rod Malossi C-One & RC-One
Stage6 presents this high-end crankshaft for scooters with Malossi C-One / RC-One crankcase or comparable tuning crankcases. It has been specifically developed for the Stage6 R/T 100 FL cylinder kit and meets the requirements of modern 100cc FL racing engines. This architecture ensures optimized engine geometry, precise alignment and efficient power transmission.
Features Stage6 R/T crankshaft Derbi
- Hot-forged 18NiCrMo5 steel (HRC): Maximum reliability and strength.
- CNC-machined connecting rod with double heat treatment: High durability under heavy load.
- Precision grinding and polishing: Excellent surface finish and improved lubrication.
- Optimized balancing with high-density tungsten inserts (17.6 g/cm³) and ultra-light connecting rod (<80 g): Minimizes vibrations and ensures smooth operation even at very high RPM.
- Runout check on every crankshaft with a maximum tolerance of 0.02 mm.
- Cold-rolled threads: Increased durability.
- Silver-plated needle bearing: Reliable operation at very high engine speeds.
Compatibility and installation tips Stage6 crankshaft
The racing crankshaft is a perfect match for the Stage6 R/T FLR 100 cylinder kit for Malossi C-One / RC-One, but is also an excellent choice for all similar high-end cylinders with 47mm stroke / 100 mm connecting rod.
Important note for installation : Before installation, clean the crankshaft thoroughly with fuel to remove the protective oil. Machining of the engine case between 82.5 and 83 mm is required, and connecting rod clearance must be checked. This crankshaft also requires a specific 20mm oil seal on the variator side instead of 19 mm (ref. S6-8039005/OR). It is also recommended to use a new Stage6 R/T crankshaft bearing kit for Piaggio.
Stage6 R/T racing crankshaft:
- Tuning level: High-end
- Stroke: 47 mm
- Connecting rod: 100 mm
- Crank pin: 20 x 41 mm
- Crank web diameter: 81 mm (crankcase machining to 82.5 – 83 mm required)
- Material: 18NiCrMo5 steel
- Weight: 1.88 kg
- Included: 1x small end bearing (14x17x16.6 mm)
- Compatible with: Tuning crankcases such as Malossi C-One & RC-One
