Description

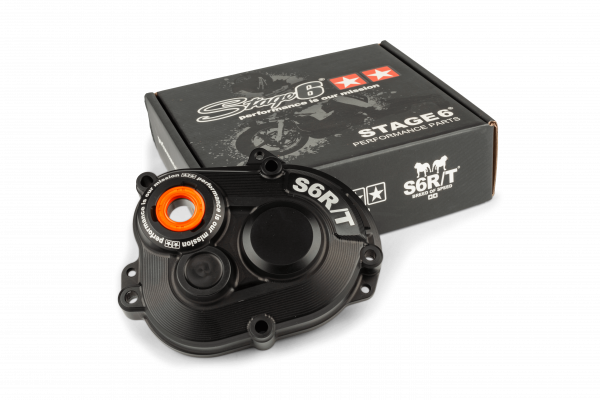

Stage6 R/T Racing Transmission Cover Piaggio
Reinforced CNC-machined Stage6 R/T gearbox cover for 50cc scooters with Piaggio engine (after 2000), like Piaggio Zip, NRG, Liberty, Vespa Primavera / Sprint / ET2, Aprilia SR, Gilera Runner / TPH / Stalker and more – the ultimate cover for tuned Piaggio engines. Also compatible with Malossi C-One and RC-One, 2Fast Piaggio, 8.1 Fireblade, and TRP Factory cases.
Note: Plug & play installation with original gears on Piaggio 2-stroke engines from 1998 onward. For Piaggio 50cc 4-stroke engines, a 2-stroke gearbox from 1998 or newer is required.
Key Features Stage6 R/T gearbox Cover
-
FKM O-Ring Seal: The biggest advantage of the Stage6 R/T gearbox cover is the Viton O-ring. The seal provides greater stability and optimizes the connection between the gearbox cover and the crankcase, significantly reducing distortion risks, especially in high-performance setups.
-
Solid CNC Machining: Made from solid billet aluminium for maximum structural strength and durability. Offers superior resilience compared to cast covers. Precision CNC machining ensures perfect fit and alignment.
-
High-Quality Bearings: Equipped with precision bearings to minimize wear and extend service life.
-
Additional Bearing on Secondary Shafts: Unlike stock covers, the R/T version features two bearings on the secondary shafts: a needle bearing for the wheel shaft and a bearing for the intermediate shaft. This reduces friction and improves efficiency, even on mildly tuned setups.
-
FKM Oil Seal: Durable orange oil seal not only ensures optimal sealing of the output shaft but also adds a visual highlight.
-
Additional Threaded Mounting Points: Extra mounting threads simplify removal and installation, ideal for maintenance or quick replacement.
-
Milled Grooves: Recesses around the oil seal area allow for easy and quick seal replacement.
Design – Stage6 R/T Gearbox Cover
The anodized finish with laser-etched Stage6 R/T logo offers a sleek racing look while also protecting against corrosion and wear. When combined with a ventilated CVT cover, this upgrade gives your Piaggio scooter a clean and aggressive race-style appearance.
Technical Details
-
Precision CNC-machined from solid aluminium
-
Premium bearings for long-term durability
-
Dual needle bearings on secondary shafts
-
FKM output shaft seal (orange)
-
FKM O-ring seal between cover and case
-
Black anodized finish
-
Laser-engraved logo
-
Fits Piaggio engine scooters with original or long gear ratio, using 16 mm output shaft (models from 1998+)
-
Gear oil: 90 ml
