Description

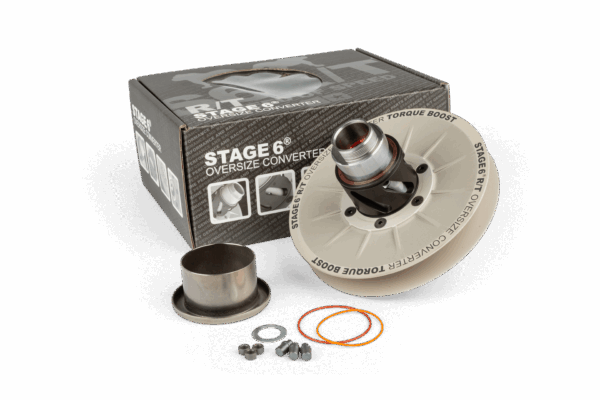

Oversize torque drive Stage6 R/T Piaggio
Stage6 R/T Torque Drive Oversize Torque Boost Piaggio for use with Stage6 R/T Oversize CVT as well as other oversize transmissions.
Construction Stage6 R/T torque driver
Unlike most torque drives on the market that are made of steel, this oversize CVT unit uses forged aluminum halves and an interchangeable guide with dual angles of 38/41°. Optional guides (39/42°, 37/40°) are available separately, a first in a converter system, opening up new tuning possibilities.
The halves are CNC-machined for maximum precision, especially on the flank angles, with special attention to surface roughness for ideal shifting and downshift behavior. Finally, the surface is deeply ceramic-coated for long-term durability.
Advantages of modular pulley:
- 3x guide bushes
One of the stand-out features is the possibility to switch out the guide bushing. The guide bushing included with the pulley has 2 different slots (38° and 41° gradient) for adjusting pulley opening angle. Other guide pieces with 39°/42° or 37°/40° angles are also available; replacing the guides is easy (screw-on). This way you can opt for a different guide bushing with different slots for different pulley opening angles and speed. - 3x pulley types
The pulleys are available in different versions / with different coatings: rough surface / ceramic coating; smooth surface / ceramic coating; smooth surface / uncoated. The additionally available versions can easily be mounted instead of the pulleys that come with the torque driver to optimize the grip of the V-belt and overall performance.
Use of S6 R/T oversize cvt pulley Piaggio
This oversize torque driver only makes sense when used in combination with an oversize variator and an oversize drive belt. We recommend the Stage6 R/T Oversize CVT and belt, but the torque driver can also be used with oversize products of other manufacturers.
Note: there is no grease included, please order separately.
Information Stage6 R/T oversize rear pulley
- comes without grease
- has to be used with oversize drive belt
- case has to be milled open
- comes with pullex type rough surface / ceramic coating
- comes with guide bush 38°/41°
- OVERSIZE transmission
- for Piaggio
